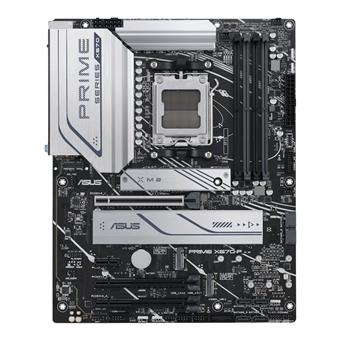

ASUS PRIME X670-P-CSM

Chipset:   AMD X670 Chipset

Rozměrový formát:   ATX Form Factor (30.5 cm x 24.4 cm)
Podpora pro procesory:   AMD Ryzen 7000 Series Desktop Processors
Patice procesoru:   AM5

Pozice na paměti:   4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti:   DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz
Max.velikost operační paměti:   128 GB
Podpora pro paměti typu:   ECC, Non-ECC

Grafické výstupy:   (na základě procesoru)

• 1 x DisplayPort 1.4
• 1 x HDMI 2.1port

Zvuková karta:   Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:   1 x Realtek 2.5Gb Ethernet

Rozšiřující sloty:

• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• 2 x PCIe 4.0 x16 slots (support x4 mode)
• 1 x PCIe 3.0 x1 slot

RAID řadič:   RAID 0/1/10

SATA:   6 x SATA 6Gb/s ports

M.2:   3 x M.2 slots

USB:

• Interní:
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Externí:
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 3 x USB 3.2 Gen 2 ports (3 x Type-A)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)

Interní porty:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 2 x Aura RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-5 pin System Panel header
• 1 x Thunderbolt (USB4) header

Externí porty:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 3 x USB 3.2 Gen 2 ports (3 x Type-A)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x V-M.2 slot (Key E)
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack button
• 1 x PS/2 Keyboard/Mouse combo port

BIOS:   UEFI AMI BIOS, 256 Mb Flash ROM
