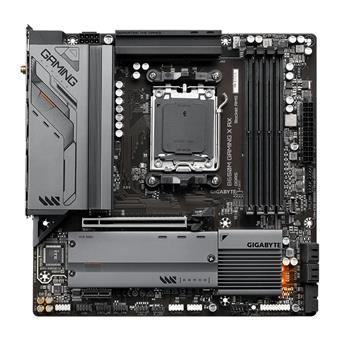

GIGABYTE B650M GAMING X AX

Chipset:   AMD B650

Rozměrový formát:   Micro ATX Form Factor; (24.4cm x 24.4cm)
Podpora pro procesory:   AMD Ryzen 7000 Series Processors
Patice procesoru:   AM5

Pozice na paměti:   4 x DDR5 DIMM, Dual channel memory architecture
Podpora pro paměti:   DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Max.velikost operační paměti:   128 GB (32 GB single DIMM capacity)
Podpora pro paměti typu:   non-ECC, XMP

Grafické výstupy:   (na základě procesoru)

• 2 x DisplayPorts 1.4, maximální rozlišení 3840x2160@144 Hz
• 1 x HDMI 2.1 port, maximální rozlišení 4096x2160@60 Hz

Zvuková karta:   Realtek Audio CODEC
2/4/5.1/7.1-channel

Síťová karta:

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax
• Bluetooth 5.2

Rozšiřující sloty:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

RAID řadič:   RAID 0, RAID 1, and RAID 10

SATA:   4 x SATA 6Gb/s connectors
M.2:   2 x M.2 Socket 3 connectors

USB:

• Interní:
• 1 x USB Type-C header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• Externí:
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 2 x USB 3.2 Gen 1 ports
• 1 x USB Type-C port, with USB 3.2 Gen 2 support
• 4 x USB 2.0/1.1 ports

Interní porty:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Externí porty:

• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 2 x DisplayPorts
• 1 x HDMI port
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x USB Type-C port, with USB 3.2 Gen 2 support
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 2 x USB 3.2 Gen 1 ports
• 3 x audio jacks

BIOS:   AMI UEFI BIOS, 1 x 256 Mbit flash
