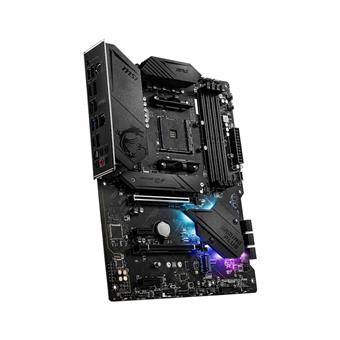

MSI MPG B550 GAMING PLUS

Chipset:   AMD B550

Rozměrový formát:   Formát ATX (305 mm x 244 mm)
Podpora pro procesory:   3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Patice procesoru:   AM4

Pozice na paměti:   4x DDR4
Podpora pro paměti:

• Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE

Max.velikost operační paměti:   128 GB
Podpora pro paměti typu:   DDR4

• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

Grafické výstupy:   na základě procesoru

• 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

Multi GPU:

• Supports 2-Way AMD CrossFire™ Technology

Zvuková karta:

• Realtek® ALC892 Codec

Síťová karta:

• 1x Realtek® 8111H Gigabit LAN controller

RAID řadič:

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Rozšiřující sloty:

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
• 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
• 2x PCIe 3.0 x1 slots

SATA:

• 6x SATA 6Gb/s ports

M.2:

• 2x M.2 slots (Key M)

USB:

• zadní USB porty ( celkem 8 )
• 4x USB 2.0 ports
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 2 10Gbps port
• 2x USB 3.2 Gen 1 5Gbps ports
• přední USB porty ( celkem 7 )
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 2x USB 3.2 Gen 1 5Gbps ports
• 4x USB 2.0 ports

Interní porty:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x TPM module connector
• 1x Clear CMOS jumper

Externí porty:

• PS/2 Combo Port
• DisplayPort
• 1x LAN Port
• 1x USB 3.2 Gen 2 10Gbps (Type-A)
• HD Audio Connectors
• Flash BIOS Button
• 4x USB 2.0
• HDMI
• 2x USB 3.2 Gen 1 5Gbps (Type-A)
• 1x USB 3.2 Gen 2 10Gbps (Type-C)
• Optical S/PDIF OUT
