HARDWARE
Ports:
1 Gigabit Ethernet Port
Button:
WPS Button, Reset Button
Power Consumption:
10W
Dimensions ( W x D x H ):
3.1×1.4×5.9 in. (78×36×149 mm)
Antenna:
2 Internal Antennas
WIRELESS
Wireless Standards:
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency:
2.4GHz and 5GHz
Signal Rate:
300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Reception Sensitivity:
5GHz:
- 11a 6Mbps: -93dBm,
- 11a 54Mbps: -75dBm
- 11ac HT20 MCS0: -92dBm,
- 11ac HT20 MCS8: -70dBm
- 11ac HT40 MCS0: -90dBm,
- 11ac HT40 MCS9: -66dBm
- 11ac HT80 MCS0: -87dBm,
- 11ac HT80 MCS9: -62dBm
2.4GHz:
- 11g 54Mbps: -77dBm,
- 11n HT20 MCS7: -75dBm
- 11n HT40 MCS7: -72dBm
Transmit Power:
CE: 2.4GHz ?20dBm, 5GHz ?30dBm
Wireless Functions:
Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security:
64/128-bit WEP, WPA/WPA-PSK2 encryptions
Package Contents:

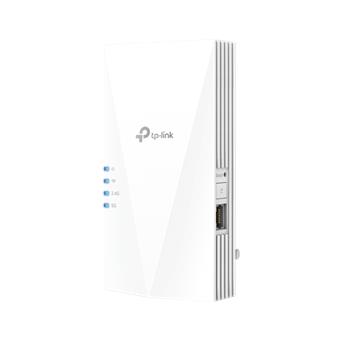

Wi-Fi Range Extender RE500X, Quick Installation Guide
System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications:
FCC, RoHS
